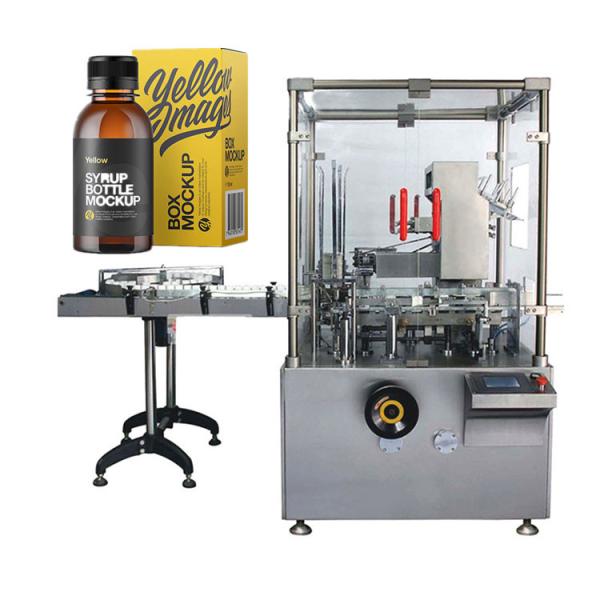

1500kg Bottle Cartoning Machine Packing 120ml
Carton Box Packing Machine uses advanced PLC system. It can be widely used in the industries of beverage, pharmacy, food, cosmetics, chemicals, commodities and so on. The working process are as follows: Loading of products; then carton box is automatically drop and opened, products are automatically loaded successively into the carton box; and tongues at both ends is completed inserted or glued.
Characteristic:
1. No products, no box dropping.
2. Stop automatically if products position not correct into carton.
3. Stop automatically if no cartons or out of leaflet continues.
4. Hand index dial wheel for adjust different size boxes.
5. High speed servo system.
Application:
Pharmaceutical industry: drug plate, oral liquid, ampoule, vials, granules in bags, pastes, ointments, aerosols, etc.
Food industry: ice cream, egg roll, bread, bagged coffee, seasoning bag, milk powder, etc.
Daily chemical industry: toothpaste, soap, cosmetics, mask, face cream, lipstick, mosquito repellent incense, incense sticks etc.
Hardware and electrical appliances: bearing, bulb, switch, socket, relay, charger, etc.
Auto parts industry: spark plug, filter, piston ring, automobile light bulb, automobile electric appliance, etc.
Plastic industry: cling fresh film, plastic products, etc.
Entertainment industry: pens, chalk, staplers, printing mud, playing cards, puzzles, toys,crafts.
Technical parameters:
| Model | WZH-200 |
| Carton(Grammage) | Between 250-350g/m2 |
| Carton(Size) | (78-150)mm×(33-70)mm×(15-60)mm |
| Instructions(Grammage) | Between( 50-70)g/m2 |
| Instructions(Size range) | (130-160) ×(100-130)mm (L×W) |
| Instructions(Fold range) | (1-4 )fold |
| Dimensions in mm | 4300㎜×1440㎜×1600㎜ |
| Weight in kg | 1500kg |
